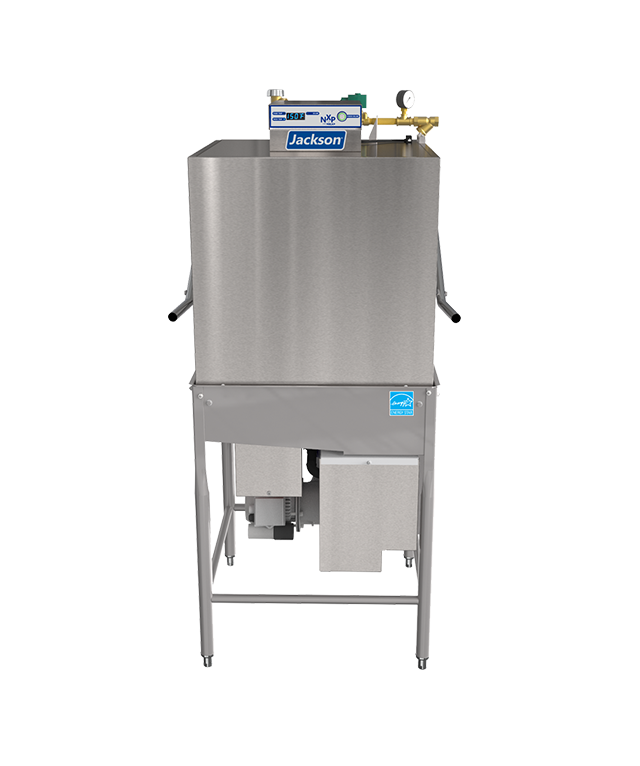

NXP-HTD
Meet the NXP-HTD. It’s a powerful, single-cycle high temperature sanitizing door-type that provides Clean the First Time® results! The NXP-HTD features automatic tank fill, door-actuated start, a built-in booster heater with Sani-Sure™ final rinse system, digital temperature display, delime cycle, interchangeable upper and lower wash/rinse arms, vent fan control, and a generous 17.25″ vertical chamber clearance.
- High temp, electric tank heat
- Cleans 63 racks per hour
- Only 0.89 gallons of water per rack
- Single 57-second automatic cycle
- 70 °F rise built-in booster heater
CLEARANCE
17.25"
- Electric tank heat
- Cleans 63 (58)* racks per hour using only 0.89 gallons of water per rack
- Built-in booster heater with Sani-Sure™ final rinse system ensures
proper sanitization is achieved every cycle - Single 57-second automatic cycle
- Automatic tank fill
- Door-actuated start
- Digital temperature display
- Delime cycle
- 17.25" vertical chamber clearance
- Interchangeable upper and lower wash/rinse arms
- 1 hp stainless steel wash pump motor
- Vent fan control shuts the vent fan off when machine is idle,
saving energy - Top mounted controls for ease of operation
- Large scrap basket
- Single point connections for all utilities
- Field convertible from straight-through to corner and
vice versa (kit required) - Field phase conversion capable (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Adjustable bullet feet
- Uses standard 20″ x 20″ (508 mm x 508 mm) racks
- 1-year parts and labor warranty
