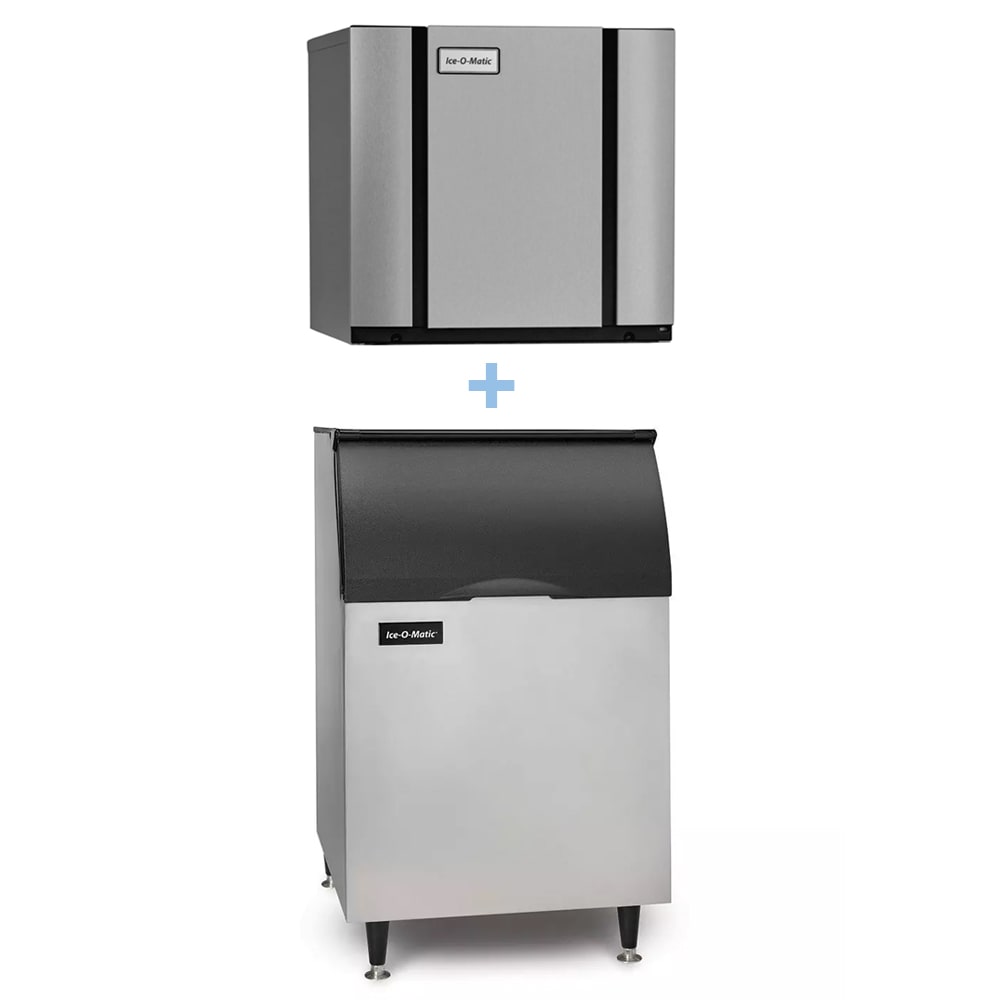

Ice-O-Matic CIM0520FA/B55PS Description
The Ice-O-Matic CIM0520FA/B55PS ice maker and bin is an air-cooled system that requires less setup work than a water- or remotely-cooled system, simplifying installation. Reducing the risk of obstructed airflow, its dual exhaust system uses top and side venting to discharge heated air. A one-touch descaling feature handles buildup inside the head to keep conditions sanitary.
Great for small-scale applications such as hotels and lobbies, the Ice-O-Matic CIM0520FA/B55PS full-cube ice machine and bin can hold as much as 510 pounds of ice in its bin. The bin is constructed with foam insulation to help hold in chill and keep the ice from melting, and to balance it out on sloped floors, the machine is fitted with 6-inch adjustable legs.
Ice Maker
- Part of the Elevation Series™
- 561-lb. maximum daily ice production
- 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
- Air-cooled system
- Produces full-cube ice
- Narrow design
- Dual exhaust system releases air from top and side to decrease exhaust obstruction
- Smart LED light alerts staff of head status and cleaning needs
- PURE ICE® antimicrobial defense
- 1-touch descaling/sanitization reduces user labor
- Plastic food zone
- Components can be removed for dishwasher cleaning
- Universal Smart Harness™ control board
- Full cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 6,252-BTU heat transfer capacity
- Ideal clearance: 6 in. for air intake and exhaust
Ice Bin
- 510-lb. bin capacity
- Sloped front door
- Polyethylene interior enhances cleaning
- Aluminum finish
- Foam insulation decreases thermal loss
- 6-in. adjustable legs
Dimensions & Utilities
Ice Maker- 22.25 in. W x 24.25 in. D x 21.25 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
Ice Bin- 30 in. W x 31 in. D x 50 in. H
